Double Self-Blocking Pulley With Aluminum Side Plates. 2 Sheaves 62 MM

$255.00

It features two sheaves and a brake cam system which allows the rope to go through freely in one direction and blocks it in the other direction.

SKU: PCA-1272 Categories: , Tags: , , ,

Description

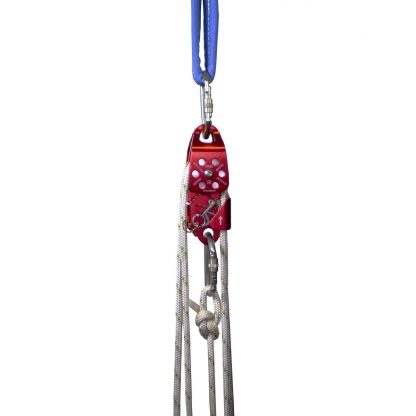

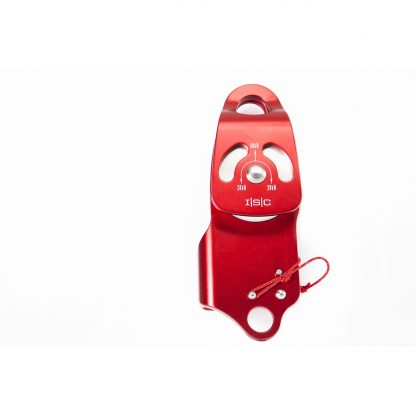

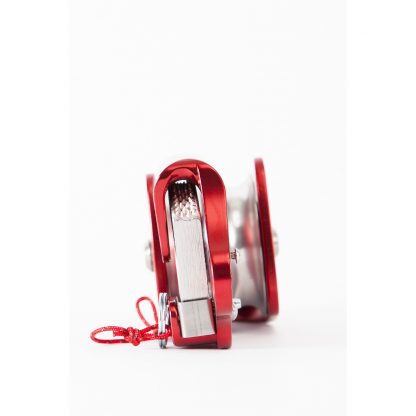

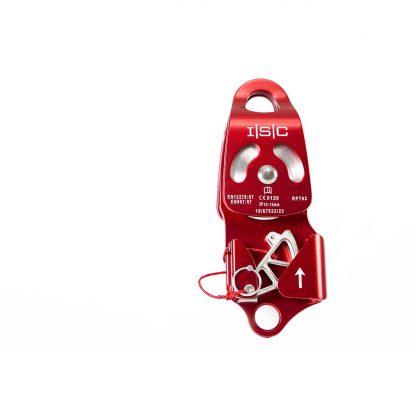

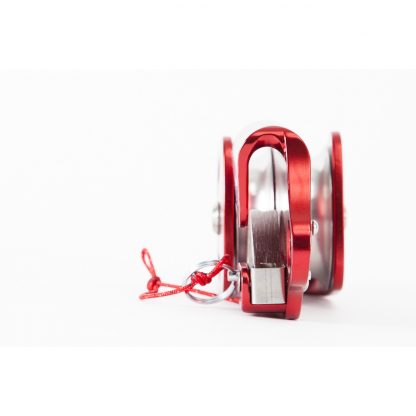

The double self-locking pulley was especially designed for rescue operations. However, it most certainly can be used in forestry, hunting our industrial applications as well. It features two sheaves and a brake cam system which allows the rope to go through freely in one direction and blocks it in the other direction. The spring-loaded cam can be disengaged by pulling a release cord. The 62 mm diameter aluminum sheaves are mounted on self-lubricating bushings and stainless steel axle. The swing sides and main plate are also made of anodized aluminum.

This pulley can also be used as a regular double pulley. You simply have to lock the brake cam in the open position using the provided pin.

Use one of our carabiners (PCA-1701 or PCA-1702) to attach it.

Ideal rope diameter: 12 mm.

Specifications

Minimum Breaking Strength: 40 kN (4079 kg)
Working Load Limit: N/A
Certification: CE
Material: Sides: Aluminum

Weight & Dimensions

Weight: 1.1 kg
Diameter: 62 mm
Length: 22 cm
Width: 8 cm
Height: 6 cm

Rope

Minimum Diameter: 6 mm
Maximum Diameter: 13 mm

Warranty

Other: 1 year

Additional Information

Not designed for steel cable. ISC Brand.

Additional information

Diameter

62 mm

Minimum Breaking Strength

40 kN (4079 kg)

Working Load Limit

N/A

Weight

1.1 kg
